VE1500R31P

Maximum Capacity	1,500 kg
Readability	0.5 kg
Readability (Certified)	0.5 kg
Item Number:	80251847

Overview
Specs
Accessories
Documents

Overview

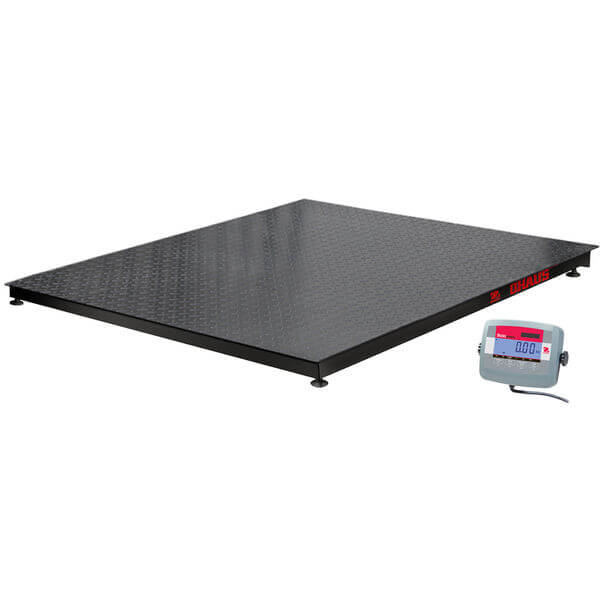

The VE Series of Floor scales are the right choice for your basic dry weighing needs in industrial and commercial applications. Coupled with corresponding ramps, mounting accessories and T31P indicator, the VE Series offer a unique combination of value, quality and dependability that your company can rely on.

Applications

Weighing, Parts Counting

Display

Backlit liquid crystal display (LCD)

Operation

AC adapter (included) or rechargeable battery (included)

Communication

Easy access communication port with RS232 interface (included)

Construction

ABS plastic indicator, 5mm fixed top plate, black treaded painted steel platform, IP65 stainless steel junction box with side access, 4 x H8C IP67 OIML R60 alloy steel load cells, two carbon steel eye bolts, available painted steel or stainless steel ramp kit and wall mount bracket kit (accessories sold separately)

Design Features

125% overload protection

Specifications

Maximum Capacity	1,500 kg
Readability	0.5 kg
Readability (Certified)	0.5 kg
Platform Size	1,250 mm x 1,250 mm
Battery Life	100 Hours with Rechargeable Battery
Communication	RS232 (Included)
Dimensions	49.2 in x 3.5 in x 60 in (1,250 mm x 90 mm x 1,250 mm) (LxHxW)
Display	LCD with white LED backlight
Legal for Trade	EC Type Approvable
Net Weight	125 kg
Outputs	Not Applicable
Platform Construction	Painted Steel Diamond Plate
Power	Rechargeable Battery (Included);AC Adapter (Included)
Protection Rating	Not Applicable
Tare Range	To capacity by subtraction
Units of Measurement	Gram;Kilogram;Pound;Ounce;Pound:Ounce
Working Environment	14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
