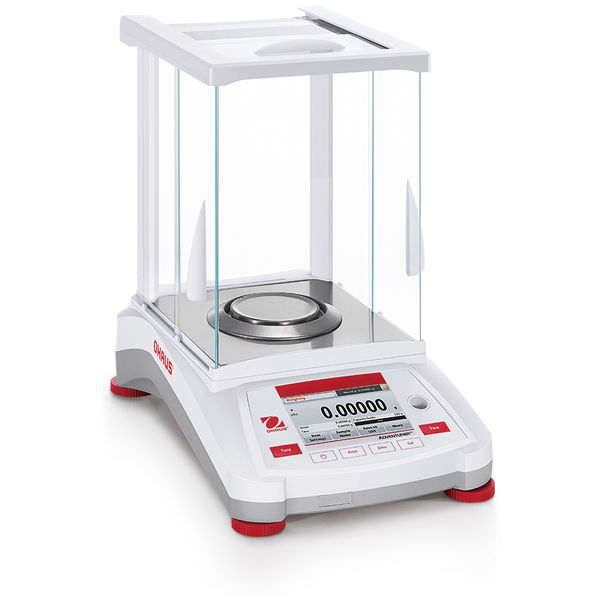

AX225D

Maximum Capacity	102 g/220 g
Readability	0.00001 g;0.0001 g
Pan Size	80 mm
Item Number:	30852309

Request a Quote ADD TO QUOTE LIST

View All Adventurer™ Semi-Micro Models

Overview
Specs
Accessories
Documents

Overview

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, three-level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.

Applications

Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing

Display

4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness

Operation

AC adapter (included)

Communication

RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.

Construction

Metal base, ABS top housing, stainless steel pan, glass draftshield with 2-piece top mounted side doors & sliding top door (1mg models only), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, full housing in-use cover

Design Features

Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages

Specifications

Maximum Capacity	102 g/220 g
Readability	0.00001 g;0.0001 g
Pan Size	80 mm
Internal Calibration	AutoCal™ - Automatic
Draftshield	Included
Dimensions	9.05 in (354 mm x 340 mm x 230 mm)
Legal for Trade	Not Applicable
Auxiliary Display Model	Available as an Accessory
Auto Door	Not Applicable
Working Environment	10°C – 30°C, 80%RH, non-condensing
Net Weight	5.1 kg
In-Use Cover	Included
Communication	USB;RS232 (Included);USB Host
Power	AC Adapter (Included)
Units of Measurement	Singapore Tael;Ounce Troy;Pennyweight;Grain;Tical;Custom;Milligram;Momme;Newton;Baht;Taiwan Tael;Gram;Hong Kong Tael;Pound;Tola;Mesghal;Carat;Ounce
Display	Full-Color 4.3 in Touchscreen WQVGA
Pan Construction	Stainless Steel
Built-in Ionizer	No
Stabilization Time	8 s
Repeatability, typical	0.00002 g;0.0001 g
Minimum Weight (USP, 0.1%, typical)	20 mg
Linearity ±	0.1 mg
