DF25P1500D1S

Maximum Capacity	1,500 kg
Readability	0.5 kg
Platform Size	800 mm x 800 mm
Item Number:	30936610

Request a Quote ADD TO QUOTE LIST

View All Defender™ 2500 Floor Scales - i-DF25 Models

Overview
Specs
Accessories
Documents

Overview

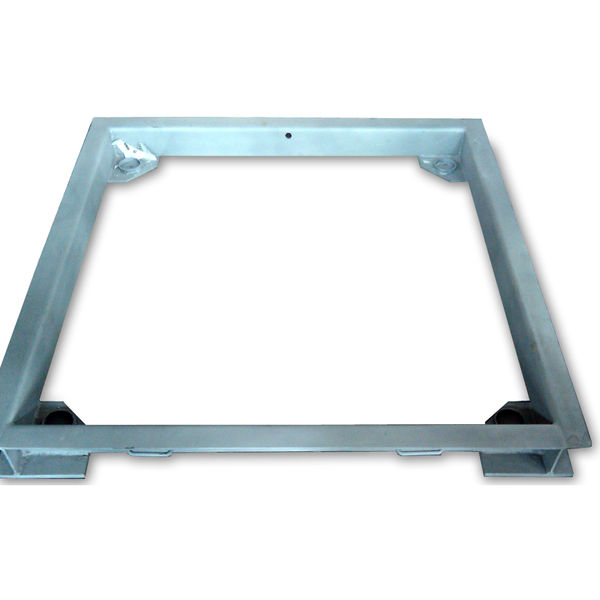

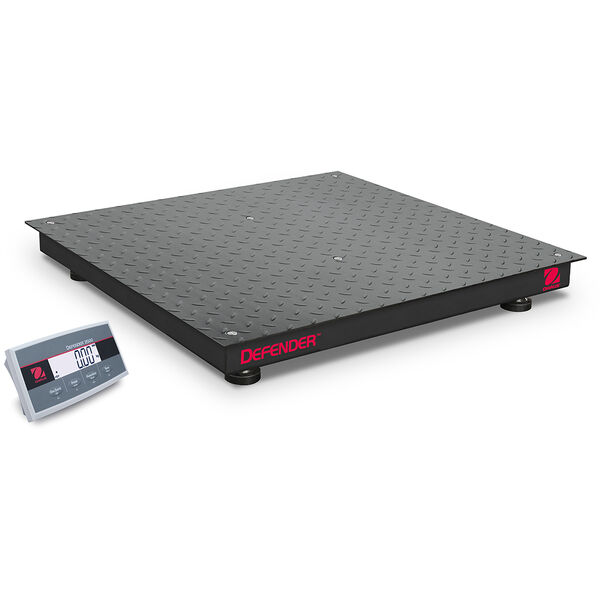

OHAUS Defender 2500 Series of floor scales are the best value for all your heavy-duty weighing needs. Available in both square and rectangular designs, corresponding ramps and mounting accessories, and with the added benefit of pit mounting options, the OHAUS Defender 2500 floor platforms and scales offer a unique combination of value, quality and dependability that your company can rely on.

Applications

Weighing, Counting, Dynamic Weighing / Display Hold, Totalization, Peak Hold

Display

6-digit, 7-segment LCD display with white backlight, 1.1 in./28 mm high digits

Operation

Standard AC adapter with detachable USB type C cable (included) or 4 AA batteries (not included)

Communication

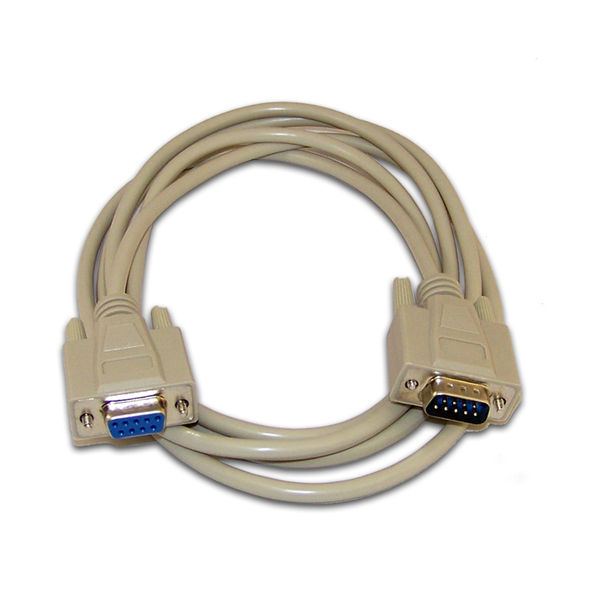

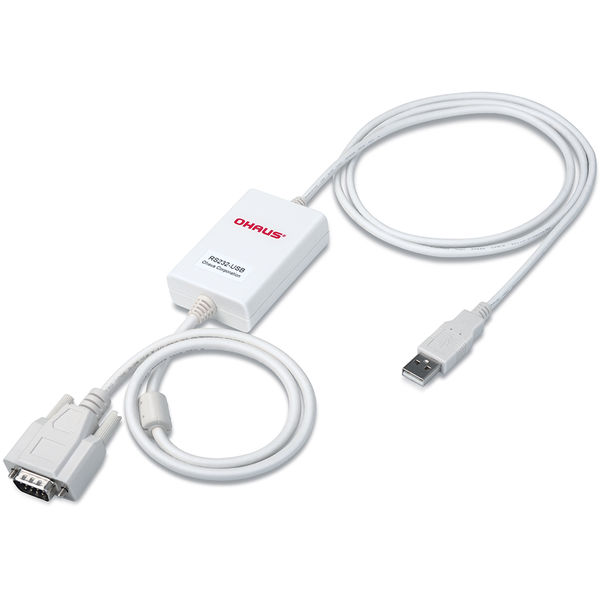

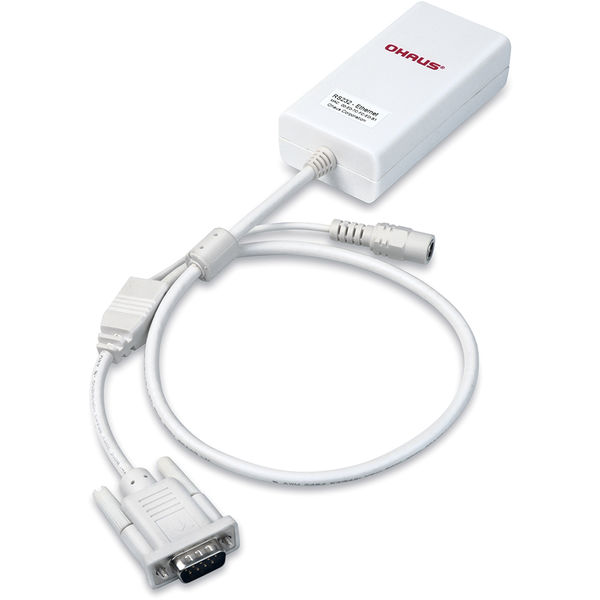

Easy access communication ports including standard RS232 and USB type C

Construction

ABS housing indicator and powder-coated steel mounting bracket, black powder coated steel treaded platform, IP65 stainless steel junction box, 4 LBZ4 IP67 OIML R60 alloy steel load cells with top height adjustment.

Design Features

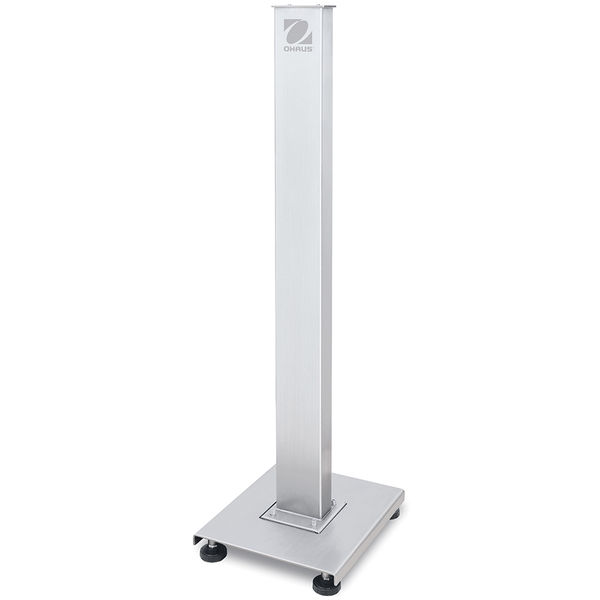

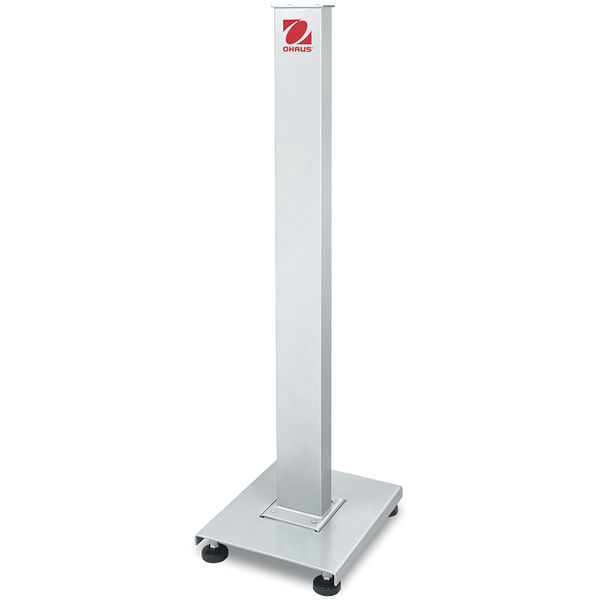

Selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto-off, auto tare. Painted and stainless steel floor stands (available as accessories)

Specifications

Maximum Capacity	1,500 kg
Readability	0.5 kg
Platform Size	800 mm x 800 mm
Protection Rating	Not Applicable
Legal for Trade	No
Dimensions	800 mm x 110 mm x 800 mm (LxHxW)
Platform Construction	Painted Steel Diamond Plate
Net Weight	73 kg
Working Environment	-10°C – 40°C, 85%RH, non-condensing
