This item has been discontinued. May we suggest something new:
Enlarge

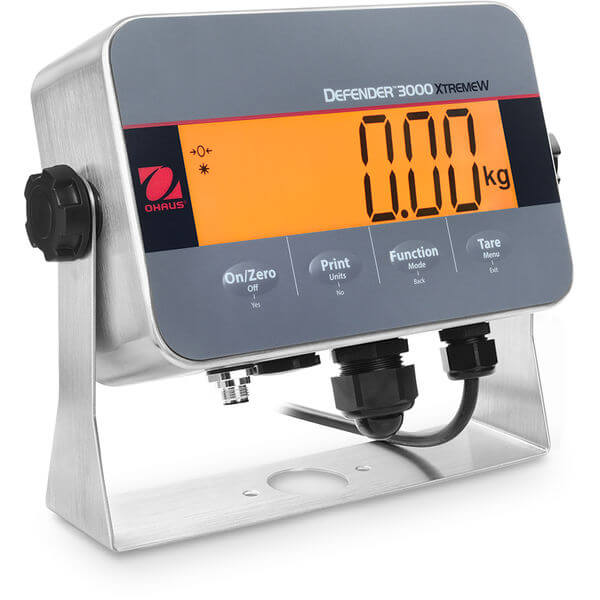

T32XW
Economical Stainless Steel Washdown Indicator for Basic Industrial Applications

T32XW-EU

Resolution 20,000
Resolution (Certified) 6,000
Battery Life 58 Hours with Rechargeable Battery
Item Number: 83997635
Overview
T32XW is the go-to indicator when simplicity and accuracy are necessary in wet environments, or the ability to thoroughly wash down the scale and indicator are a must. The NEMA 4X/IP65 washdown stainless steel housing indicator features software for weighing and simple parts counting, a large high contrast backlit LCD display, a stainless steel mounting bracket, as well as a built-in bi-directional RS232C for printing or connection to a PC.
Applications
Weighing, Parts Counting
Display
Backlit liquid crystal display (LCD)
Operation
Power cord (included) or rechargeable battery (included)
Communication
Easy access communication port including RS232 interface (included)
Construction
IP65/NEMA 4X stainless steel housing and mounting bracket, easy-open hinged front cover
Design Features
User-configurable resolution up to 20,000d/6,000e, OIML Approved, NTEP Certified and Measurement Canada Approved
Specifications
Resolution 20,000
Resolution (Certified) 6,000
Battery Life 58 Hours with Rechargeable Battery
Outputs Not Applicable
Second Scale Input Not Applicable
Protection Rating IP65;NEMA 4X
Communication RS232 (Included)
Dimensions 2.8 in x 8.1 in x 9 in (71 mm x 201 mm x 239 mm) (LxHxW)
Display LCD with white LED backlight
In-Use Cover No
Legal for Trade NTEP Certified;EC Type Approvable;Measurement Canada Approved
Net Weight 7.1 lb (3.2 kg)
Power AC Power (Included);Rechargeable Battery (Included)
Protection Rating IP65;NEMA 4X
Stabilization Time 2 s
Units of Measurement Gram;Kilogram;Pound;Ounce;Pound:Ounce
Working Environment 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Accessories

Item Number

80500552

Description

Cable RS232 XW Indicators

Request a Quote Add To Quote List Remove From Quote List

Item Number

30064202

Description

Printer, Impact, SF40A, EU

Request a Quote Add To Quote List Remove From Quote List

Item Number

80251748

Description

Wall Mount Kit, SST, T32XW

Request a Quote Add To Quote List Remove From Quote List
