TAJ202

Maximum Capacity	200 g
Readability	0.01 g
Pan Size	5.4 in x 5.5 in (137 mm x 140 mm)
Item Number:	72209812

Overview
Specs
Accessories
Documents

Overview

The OHAUS TAJ Gold Series combines solid reliability with unsurpassed value. Featuring a stainless steel pan, multiple weighing units and an easy-to-read backlit display, it is prepared for precious metal jewelry weighing.

Applications

Weighing, Parts Counting

Display

Backlit liquid crystal display (LCD)

Operation

AC Adapter (Included) or 4 AA Batteries (Not included)

Communication

RS232 or USB with integrated cable (accessories sold separately)

Construction

ABS housing, stainless steel pan, integral weigh below hook and shipping lock, security bracket, manual lock switch

Design Features

User selectable communication and printing settings, auto shut off, mechanical and software overload/underload protection

Specifications

Maximum Capacity	200 g
Readability	0.01 g
Pan Size	5.4 in x 5.5 in (137 mm x 140 mm)
Battery Life	24 Hours with Disposable Batteries
Communication	RS232 (Available as an Accessory);USB (Available as an Accessory)

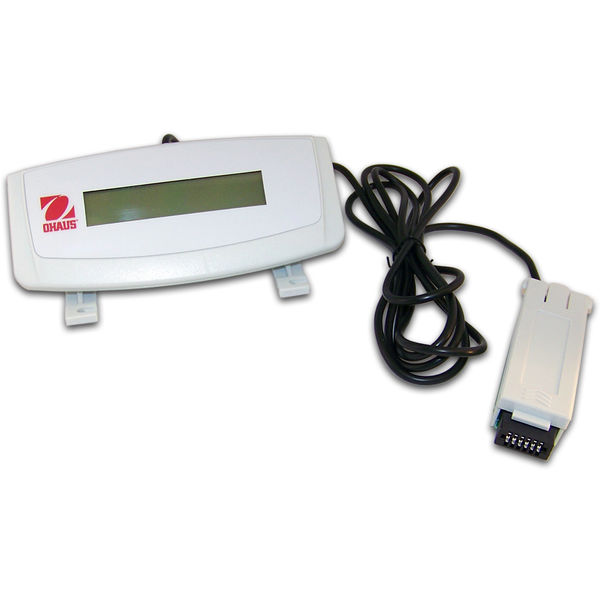

Auxiliary Display Model	Available as an Accessory
Dimensions	8.5 in x 2.3 in x 5.6 in (217 mm x 58 mm x 143 mm) (LxHxW)
Display	LCD with backlight
Internal Calibration	Not Applicable
In-Use Cover	No
Legal for Trade	Not applicable
Linearity ±	0.01 g
Net Weight	2.2 lb (1 kg)
Pan Construction	Stainless Steel
Power	4 AA (LR6) Batteries (Not Included);AC Adapter (Included)
Repeatability, typical	0.01 g
Stabilization Time	3 s
Tare Range	To capacity by subtraction
Transportation Case	Not Applicable
Units of Measurement	Singapore Tael;Ounce Troy;Pennyweight;Taiwan Tael;Grain;Gram;Hong Kong Tael;Tola;Tical;Carat;Ounce
Working Environment	50°F – 104°F, 80%RH, non-condensing (10°C – 40°C, 80%RH, non-condensing)
