OIML Individual Calibration Weights
Individual Calibration Weights Adjusted to Meet or Exceed OIML Class E1, E2, F1, and F2 Tolerances

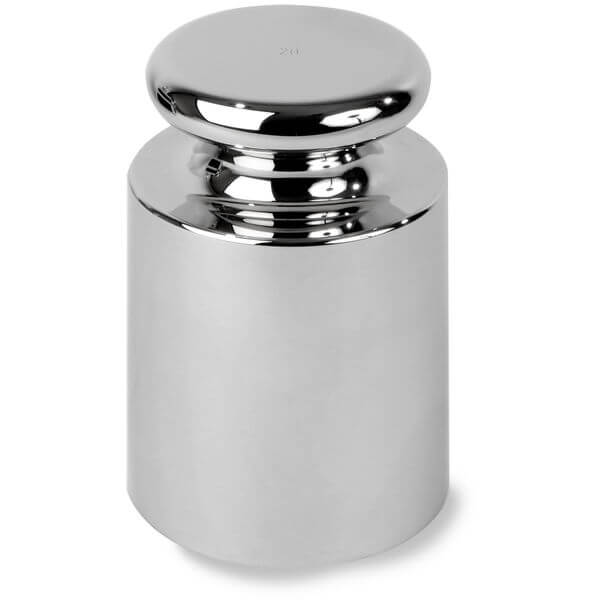

Weight 1P OIML 20kg CLE2 No Cert TR

OIML Class E2
Weight Value 20 kg
Design Cylindrical
Item Number: 30518026
Overview
OIML Individual Calibration Weights
Applications
Use OIML E1 as a primary reference to calibrate other mass standards and use for traceability between national mass standards and OIML E2 weights and lower. OIML E1 is appropriate for calibrating high-precision balances with readability as low as 0.1 mg.
Display
N/A
Operation
N/A
Communication
N/A
Construction
Two-piece
Design Features
Weights 50kg - 1g have a tapered neck allowing easy handling, polished mirror-like finish allowing scratches or foreign matter to be seen, and bottom of weights are recessed to reduce wear. mg weights are flat with one end turned up for easy handling.
Specifications
OIML Class E2
Weight Value 20 kg
Design Cylindrical
Protective Case Included
Construction One-piece
Density at 20°C 8.03 g/cm3
Dimensions 8.27 in x 5.22 in (20.996 cm x 13.27 cm) (HxØ)
Dimensions in Case 9 in x 8 in x 8 in (22.86 cm x 20.32 cm x 20.32 cm) (LxHxW)
Weight Material Troemner Alloy 8;Troemner Alloy 8.
Weight Tolerance 30 mg
Wgt Origin (USA) USA
