DF32M1500BS

Maximum Capacity	1,500 kg
Readability	0.5 kg
Platform Size	800 mm x 800 mm
Item Number:	83997598

Request a Quote ADD TO QUOTE LIST

View All DF Series Models

Overview
Specs
Accessories
Documents

Overview

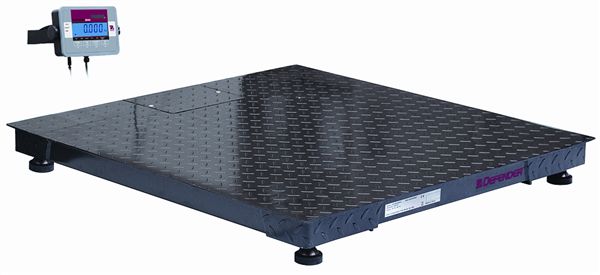

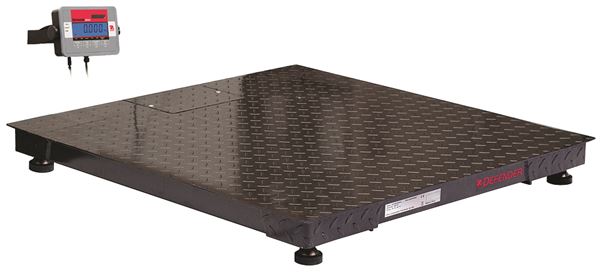

OHAUS Defender 3000 Series of floor scales are the best value for all your heavy-duty weighing needs. Available in both square and rectangular designs, corresponding ramps and mounting accessories, and with the added benefit of pit mounting options, the OHAUS Defender 3000 floor platforms and scales offer a unique combination of value, quality and dependability that your company can rely on.

Applications

Weighing, Parts Counting, Checkweighing, Accumulation, Display Hold

Display

T32MC: Backlit liquid crystal display (LCD) T32ME: Light-emitting diode display (LED)

Operation

AC adapter (included)

Communication

Easy access communication port including RS232 interface (included)

Construction

Front ABS/rear painted carbon steel indicator and mounting bracket, black painted steel treaded platform, IP65 stainless steel junction box, 5mm thick fixed top plate, 4 H8C IP67 OIML R60 alloy steel load cells, pit frames and ramps (accessories sold separately)

Design Features

150% overload capacity protection

Specifications

Maximum Capacity	1,500 kg
Readability	0.5 kg
Platform Size	800 mm x 800 mm
Communication	RS232 (Included)
Dimensions	800 mm x 110 mm x 800 mm (LxHxW)
Display	LCD with white LED backlight
Legal for Trade	EC Type Approvable
Net Weight	72 kg
Outputs	Not applicable
Platform Construction	Painted Steel Diamond Plate
Power	AC Adapter (Included)
Protection Rating	Not applicable
Tare Range	To capacity by subtraction
Units of Measurement	Gram;Kilogram;Ounce;Pound:Ounce
Working Environment	14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
